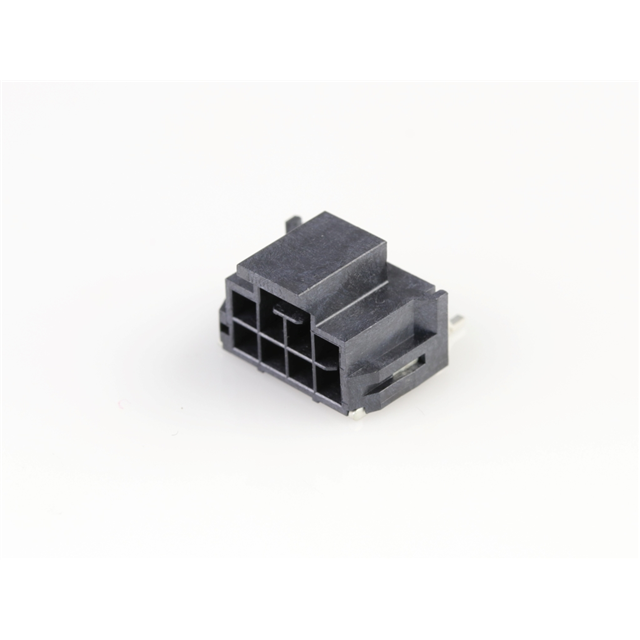

1054051208

  • Manufacturer MOLEX
  • Description conn header smd r/a 8pos 2.5mm
  • Detailed Description connector header surface mount, right angle 8 position 0.098" (2.50mm)
  • DatasheetDatasheet

Product Attributes

  • Category rectangular connectors - headers, male pins - headers, male pins
  • PackagingCut Tape (CT)
  • Features-
  • Connector TypeHeader
  • Voltage Rating-
  • Current Rating (Amps)-
  • Mounting TypeSurface Mount, Right Angle
  • Number of Positions8
  • Number of Rows2
  • StyleBoard to Cable/Wire
  • Operating Temperature-
  • Contact TypeMale Pin
  • Fastening TypeLatch Holder
  • Number of Positions LoadedAll
  • TerminationSolder
  • Ingress Protection-
  • Material Flammability Rating-
  • Contact MaterialBrass
  • Insulation ColorBlack
  • Pitch - Mating0.098" (2.50mm)
  • Contact Finish - MatingGold
  • Contact Finish Thickness - Mating15.0µin (0.38µm)
  • Contact Finish - PostTin
  • Contact ShapeSquare
  • Contact Length - Post-
  • Insulation Height0.247" (6.28mm)
  • ShroudingShrouded - 4 Wall
  • Overall Contact Length-
  • Insulation MaterialLiquid Crystal Polymer (LCP)
  • Row Spacing - Mating0.098" (2.50mm)
  • Contact Length - Mating-

Environmental & Export Classifications

  • RoHSStatusROHS3 Compliant
  • MoistureSensitivityLevel1 (Unlimited)
  • ReachStatusReach unaffected
  • ExportControlClassNumber(ECCN)EAR99
  • HTSUSCode(HTSUS)8536.69.4040
