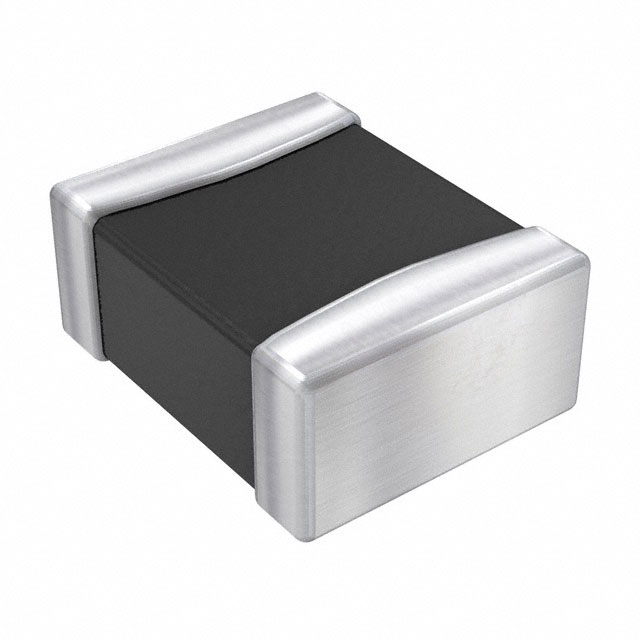

AIML-0805-3R3K-T

  • Manufacturer ABRACON LLC
  • Description fixed ind 3.3uh 30ma 0.8ohm smd
  • Detailed Description 3.3 µh shielded multilayer inductor 30 ma 800mohm 0805 (2012 metric)
  • DatasheetDatasheet

Product Attributes

  • Category fixed inductors
  • PackagingCut Tape (CT)
  • Tolerance±10%
  • Features-
  • Package / Case0805 (2012 Metric)
  • Size / Dimension0.079" L x 0.049" W (2.00mm x 1.25mm)
  • Mounting TypeSurface Mount
  • ShieldingShielded
  • TypeMultilayer
  • Operating Temperature-55°C ~ 125°C
  • DC Resistance (DCR)800mOhm
  • Q @ Freq45 @ 10MHz
  • Frequency - Self Resonant41MHz
  • Ratings-
  • Current - Saturation (Isat)-
  • Material - CoreFerrite
  • Inductance Frequency - Test10 MHz
  • Supplier Device Package0805 (2012 Metric)
  • Height - Seated (Max)0.041" (1.05mm)
  • Inductance3.3 µH
  • Current Rating (Amps)30 mA

Environmental & Export Classifications

  • RoHSStatusROHS3 Compliant
  • MoistureSensitivityLevel1 (Unlimited)
  • ReachStatusReach unaffected
  • ExportControlClassNumber(ECCN)EAR99
  • HTSUSCode(HTSUS)8504.50.8000
